Posterior estimation with NumPyro bridge¶
import astropy.units as u
import jax
import jax.numpy as jnp
import numpy as np
import numpyro
import numpyro.distributions as dist
from astropy.coordinates import EarthLocation, SkyCoord
from astropy.time import Time
from numpyro.infer import MCMC, NUTS, init_to_value
import nyx
from nyx import (
Airglow,
EffectiveApertureInstrument,
Geometry,
Moon,
Observation,
Scene,
SingleScattering,
Stars,
ZodiacalLight,
freeze_all,
unfreeze,
)
from nyx.infer import init_values, scene_model
nyx.configure()
JAX is not using 64-bit precision. Results will diverge from healpy even at moderate nside and can overflow for nside > 8192. See the README on numerical precision.
Building the model¶
geo = Geometry(
wvls=jnp.linspace(300, 700, 40) * u.nm, # wavelength grid
nside=32, # HEALPix resolution
ngrid=2, # FOV eval grid
fov=3.5 * u.deg, # field of view
)
hess_ct1 = EffectiveApertureInstrument.from_iactrace_table(geo, "CT1_aperture.npz")
hess_stereo = {"CT1": hess_ct1, "CT2": hess_ct1, "CT3": hess_ct1, "CT4": hess_ct1}
atmosphere = SingleScattering.from_hg_ozone(geo)
sources = {
"airglow": Airglow.from_eso_skycalc(geo, sfu=100.0),
"zodiacal": ZodiacalLight.from_leinert1998(geo),
"GaiaDR3": Stars.from_gaia_dr3(geo, lim_mag=12),
"moon": Moon.from_jones2013(geo),
}
location_ct1 = EarthLocation.from_geodetic(
lon=16.50091 * u.deg,
lat=-23.27153 * u.deg,
height=1.835 * u.km,
)
location_ct2 = EarthLocation.from_geodetic(
lon=16.50010 * u.deg,
lat=-23.27075 * u.deg,
height=1.835 * u.km,
)
location_ct3 = EarthLocation.from_geodetic(
lon=16.49925 * u.deg,
lat=-23.27151 * u.deg,
height=1.835 * u.km,
)
location_ct4 = EarthLocation.from_geodetic(
lon=16.50012 * u.deg,
lat=-23.27232 * u.deg,
height=1.835 * u.km,
)
times = Time("2021-01-12T21:12:16", scale="utc") + jnp.linspace(0, 30, 3) * 60 * u.s
target = SkyCoord(l=184 * u.deg, b=-6 * u.deg, frame="galactic")
observations = {
"CT1": Observation(location_ct1, times, target, geo),
"CT2": Observation(location_ct2, times, target, geo),
"CT3": Observation(location_ct3, times, target, geo),
"CT4": Observation(location_ct4, times, target, geo),
}
scene = Scene.build(hess_stereo, atmosphere, sources, observations)
Scene(instruments: CT1(3 obs), CT2(3 obs), CT3(3 obs), CT4(3 obs); sources: airglow, zodiacal, GaiaDR3, moon; atmosphere: SingleScattering; 3884 of 3884 parameter values free)
Synthetic truth data¶
We changed aod_500, anstrom_exp, pointing shifts and instrument efficiency. We also add a 5% relative error.
rng = np.random.default_rng(44)
true_shifts = {
name: np.deg2rad(rng.uniform(-0.05, 0.05, size=(scene.nobs[name], 2))) for name in scene
}
truth = scene.set_params(
{f"instruments.{name}.shift": jnp.asarray(s) for name, s in true_shifts.items()}
| {
"atmosphere.components.Mie.aod_500": 0.15,
"atmosphere.components.Mie.angstrom_exp": 1.3,
"instruments.*.efficiency": 0.8,
}
)
rel_error = 0.05
truth_images = {
name: jnp.asarray(np.asarray(r) * rng.lognormal(0.0, rel_error, size=r.shape))
for name, r in truth.render().items()
}
Parameter freezing and priors¶
We freeze all parameters, then selectively unfreeze all parameters we want to sample.
model_scene = unfreeze(
freeze_all(scene),
"atmosphere.components.Mie.aod_500",
"atmosphere.components.Mie.angstrom_exp",
"instruments.*.shift",
"instruments.*.rotation",
"instruments.*.efficiency",
)
We define our priors using numpyro dists and then create a numpyro scene_model, with the likelihood containing a fittable sigma.
priors = {
"atmosphere.components.Mie.aod_500": dist.Uniform(0.001, 2.0),
"atmosphere.components.Mie.angstrom_exp": dist.Uniform(0.0, 2.5),
"instruments.*.shift": dist.Uniform(-jnp.deg2rad(0.1), jnp.deg2rad(0.1)),
"instruments.*.rotation": dist.Uniform(-jnp.deg2rad(1.0), jnp.deg2rad(1.0)),
"instruments.*.efficiency": dist.Uniform(0.5, 2.0),
}
def nyx_model():
sigma = numpyro.sample("rel_error", dist.HalfNormal(0.1))
scene_model(
model_scene,
truth_images,
priors,
lambda predicted: dist.LogNormal(jnp.log(predicted), sigma),
)()
Running NUTS¶
init_values gives the current values of the model_scene, which enables us to start from a fit or other initialization.
kernel = NUTS(
nyx_model,
max_tree_depth=6,
init_strategy=init_to_value(values=init_values(model_scene)),
dense_mass=[
(
"atmosphere.components.Mie.aod_500",
"atmosphere.components.Mie.angstrom_exp",
*(f"instruments.{name}.efficiency" for name in scene),
"rel_error",
)
],
)
mcmc = MCMC(kernel, num_warmup=500, num_samples=2000, num_chains=1)
mcmc.run(jax.random.PRNGKey(0), extra_fields=("num_steps",))
mcmc.print_summary()
num_steps = mcmc.get_extra_fields()["num_steps"]
print(f"leapfrog steps per sample - mean {num_steps.mean():.1f}, max {num_steps.max()}")
sample: 100%|████████████| 2500/2500 [02:33<00:00, 16.29it/s, 15 steps of size 2.73e-01. acc. prob=0.88]
mean std median 5.0% 95.0% n_eff r_hat
atmosphere.components.Mie.angstrom_exp 1.13 0.64 1.10 0.08 2.11 767.06 1.00
atmosphere.components.Mie.aod_500 0.14 0.02 0.14 0.11 0.16 1506.11 1.00
instruments.CT1.efficiency 0.80 0.00 0.80 0.79 0.80 2375.79 1.00
instruments.CT1.rotation[0] 0.00 0.00 0.00 0.00 0.00 4643.19 1.00
instruments.CT1.rotation[1] -0.00 0.00 -0.00 -0.00 0.00 1881.57 1.00
instruments.CT1.rotation[2] 0.00 0.00 0.00 -0.00 0.00 2577.71 1.00
instruments.CT1.shift[0,0] -0.00 0.00 -0.00 -0.00 -0.00 3626.40 1.00
instruments.CT1.shift[0,1] -0.00 0.00 -0.00 -0.00 -0.00 3524.91 1.00
instruments.CT1.shift[1,0] -0.00 0.00 -0.00 -0.00 -0.00 2305.23 1.00
instruments.CT1.shift[1,1] 0.00 0.00 0.00 0.00 0.00 1891.66 1.00
instruments.CT1.shift[2,0] -0.00 0.00 -0.00 -0.00 -0.00 2818.78 1.00
instruments.CT1.shift[2,1] 0.00 0.00 0.00 0.00 0.00 3350.32 1.00
instruments.CT2.efficiency 0.80 0.00 0.80 0.79 0.80 2494.15 1.00
instruments.CT2.rotation[0] 0.00 0.00 0.00 -0.00 0.00 1890.79 1.00
instruments.CT2.rotation[1] 0.00 0.00 0.00 -0.00 0.00 2880.44 1.00
instruments.CT2.rotation[2] -0.00 0.00 -0.00 -0.00 0.00 3772.14 1.00
instruments.CT2.shift[0,0] -0.00 0.00 -0.00 -0.00 -0.00 4253.78 1.00
instruments.CT2.shift[0,1] -0.00 0.00 -0.00 -0.00 -0.00 1952.28 1.00
instruments.CT2.shift[1,0] 0.00 0.00 0.00 0.00 0.00 3810.28 1.00
instruments.CT2.shift[1,1] 0.00 0.00 0.00 0.00 0.00 3646.89 1.00
instruments.CT2.shift[2,0] 0.00 0.00 0.00 0.00 0.00 5637.79 1.00
instruments.CT2.shift[2,1] -0.00 0.00 -0.00 -0.00 -0.00 3051.60 1.00
instruments.CT3.efficiency 0.80 0.00 0.80 0.79 0.80 2233.11 1.00
instruments.CT3.rotation[0] 0.00 0.00 0.00 -0.00 0.00 3608.24 1.00
instruments.CT3.rotation[1] 0.00 0.00 0.00 -0.00 0.00 2733.53 1.00
instruments.CT3.rotation[2] -0.00 0.00 -0.00 -0.00 0.00 2880.03 1.00
instruments.CT3.shift[0,0] 0.00 0.00 0.00 0.00 0.00 3263.44 1.00
instruments.CT3.shift[0,1] 0.00 0.00 0.00 0.00 0.00 3998.01 1.00
instruments.CT3.shift[1,0] 0.00 0.00 0.00 0.00 0.00 3620.75 1.00
instruments.CT3.shift[1,1] -0.00 0.00 -0.00 -0.00 -0.00 2876.97 1.00
instruments.CT3.shift[2,0] 0.00 0.00 0.00 0.00 0.00 3087.71 1.00
instruments.CT3.shift[2,1] 0.00 0.00 0.00 0.00 0.00 2933.59 1.00
instruments.CT4.efficiency 0.80 0.00 0.80 0.79 0.80 2466.84 1.00
instruments.CT4.rotation[0] 0.00 0.00 0.00 -0.00 0.00 4092.25 1.00
instruments.CT4.rotation[1] 0.00 0.00 0.00 -0.00 0.00 3341.13 1.00
instruments.CT4.rotation[2] 0.00 0.00 0.00 -0.00 0.00 2324.41 1.00
instruments.CT4.shift[0,0] 0.00 0.00 0.00 0.00 0.00 4029.80 1.00
instruments.CT4.shift[0,1] -0.00 0.00 -0.00 -0.00 -0.00 5105.67 1.00
instruments.CT4.shift[1,0] -0.00 0.00 -0.00 -0.00 -0.00 3394.59 1.00
instruments.CT4.shift[1,1] 0.00 0.00 0.00 0.00 0.00 4527.76 1.00
instruments.CT4.shift[2,0] -0.00 0.00 -0.00 -0.00 -0.00 2465.06 1.00
instruments.CT4.shift[2,1] 0.00 0.00 0.00 0.00 0.00 3755.51 1.00
rel_error 0.05 0.00 0.05 0.05 0.05 5061.30 1.00
Number of divergences: 0
leapfrog steps per sample - mean 15.0, max 15
Compared to the injected truth¶
samples = mcmc.get_samples()
for name, injected in [
("atmosphere.components.Mie.aod_500", 0.15),
("atmosphere.components.Mie.angstrom_exp", 1.3),
("rel_error", rel_error),
*((f"instruments.{name}.efficiency", 0.8) for name in scene),
]:
s = samples[name]
print(f"{name:45s} {s.mean():8.4f} +- {s.std():.4f} injected {injected}")
for name, injected in true_shifts.items():
posterior = np.asarray(samples[f"instruments.{name}.shift"]).mean(axis=0)
residual = np.rad2deg(posterior - injected) * 3600
print(f"{name} shift residual rms {np.std(residual):.1f} arcsec")
atmosphere.components.Mie.aod_500 0.1351 +- 0.0157 injected 0.15
atmosphere.components.Mie.angstrom_exp 1.1302 +- 0.6425 injected 1.3
rel_error 0.0500 +- 0.0003 injected 0.05
instruments.CT1.efficiency 0.7967 +- 0.0022 injected 0.8
instruments.CT2.efficiency 0.7972 +- 0.0022 injected 0.8
instruments.CT3.efficiency 0.7972 +- 0.0022 injected 0.8
instruments.CT4.efficiency 0.7958 +- 0.0022 injected 0.8
CT1 shift residual rms 1.8 arcsec
CT2 shift residual rms 2.5 arcsec
CT3 shift residual rms 2.3 arcsec
CT4 shift residual rms 1.7 arcsec

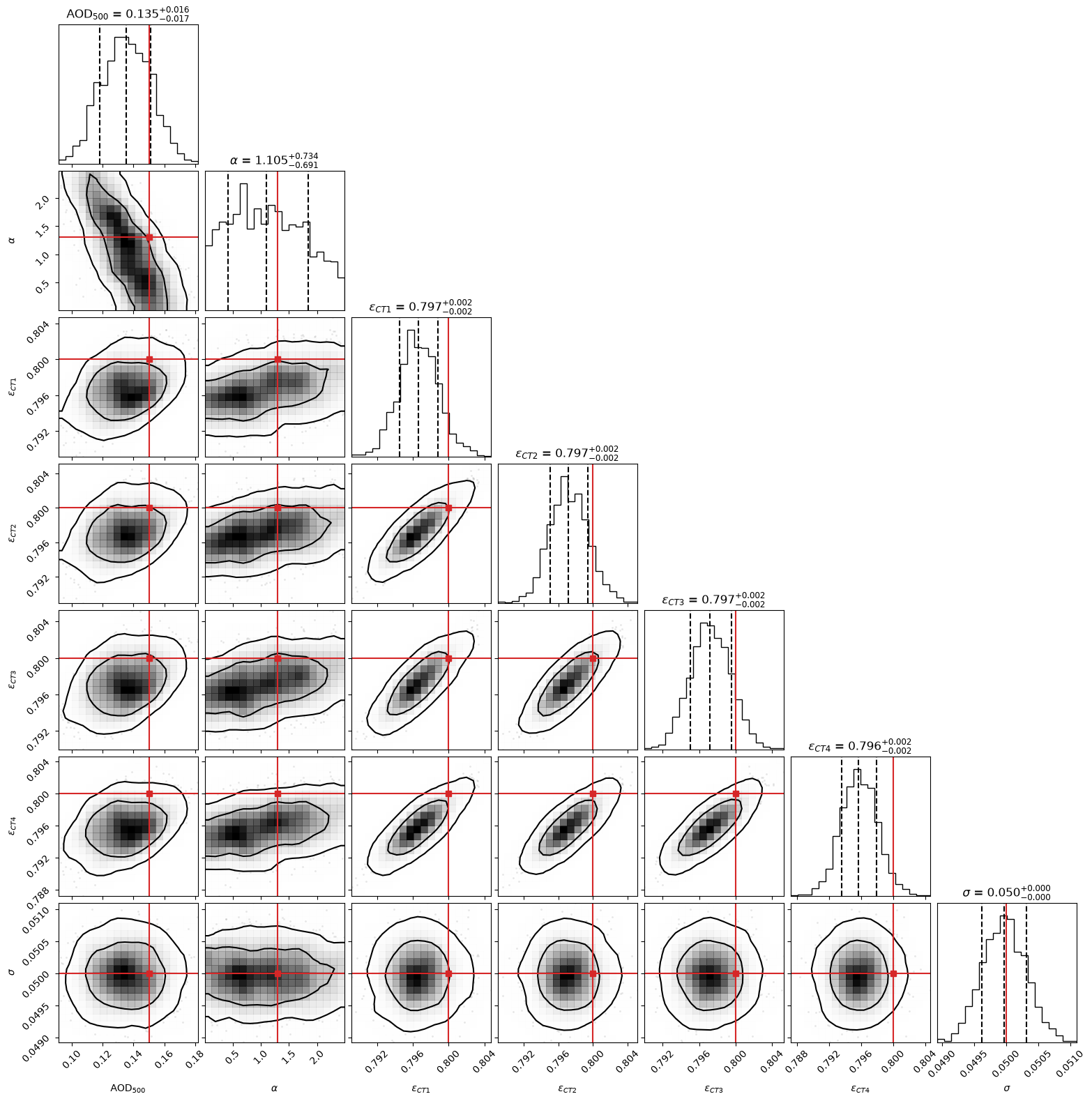

Corner plot for scalar parameters:¶
import corner
import matplotlib.pyplot as plt
params = {
"atmosphere.components.Mie.aod_500": ("AOD$_{500}$", 0.15),
"atmosphere.components.Mie.angstrom_exp": (r"$\alpha$", 1.3),
**{f"instruments.{n}.efficiency": (rf"$\epsilon_{{{n}}}$", 0.8) for n in scene},
"rel_error": (r"$\sigma$", rel_error),
}
data = np.column_stack([np.asarray(samples[k]) for k in params])
labels = [v[0] for v in params.values()]
truths = [v[1] for v in params.values()]
fig = corner.corner(
data,
labels=labels,
truths=truths,
truth_color="C3",
quantiles=[0.16, 0.5, 0.84],
show_titles=True,
title_fmt=".3f",
smooth=1.0,
levels=(0.68, 0.95),
)
plt.show()

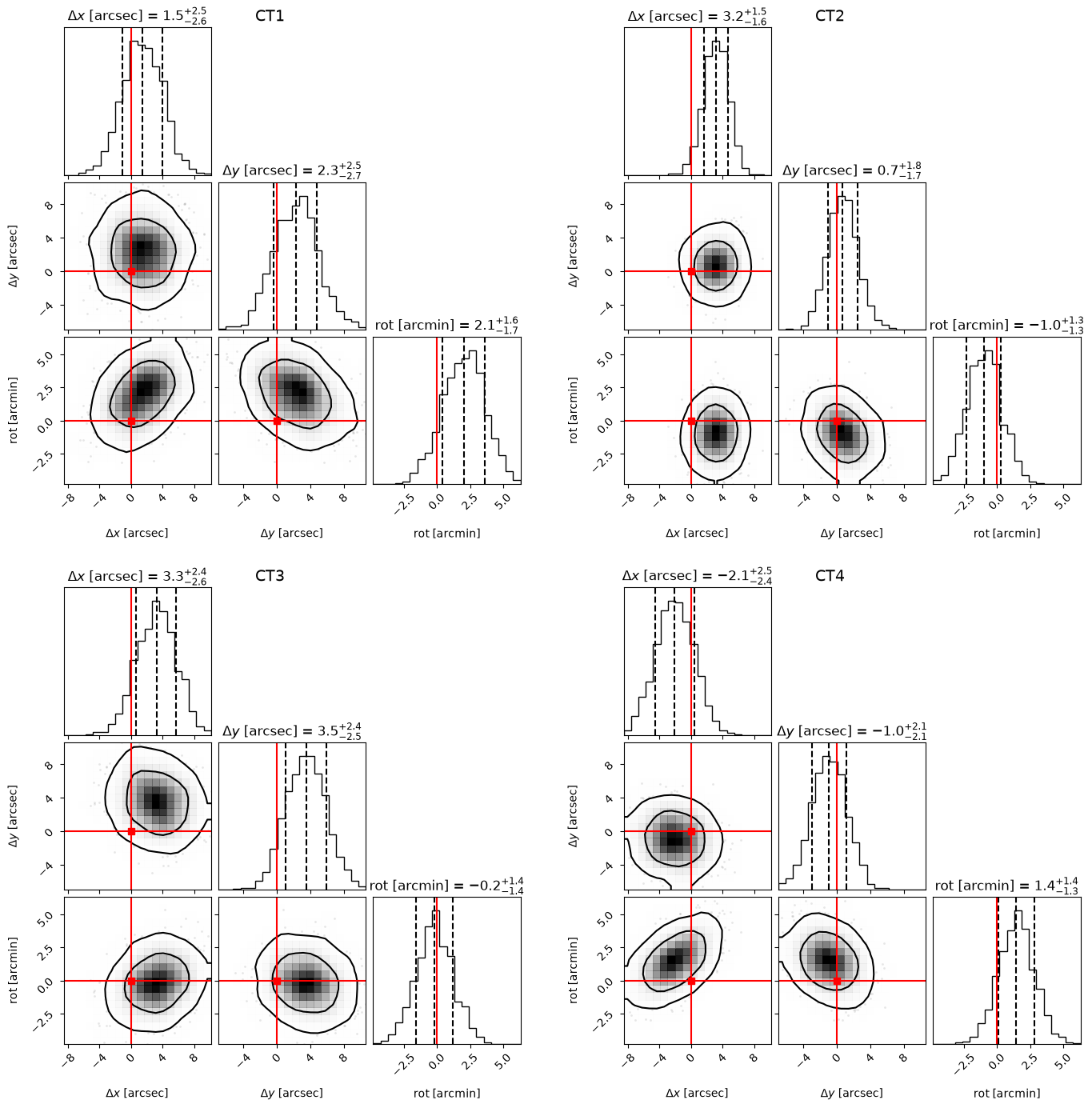

t = 2 # time index
names = list(scene)
colors = [f"C{i}" for i in range(len(names))]
labels = [r"$\Delta x$ [arcsec]", r"$\Delta y$ [arcsec]", "rot [arcmin]"]
def timestep_data(name, t):
shift = np.asarray(samples[f"instruments.{name}.shift"])
rot = np.asarray(samples[f"instruments.{name}.rotation"])
n, nobs = shift.shape[0], scene.nobs[name]
shift = shift.reshape(n, nobs, 2)[:, t]
rot = rot.reshape(n, nobs, -1)[:, t, 0]
dshift = np.rad2deg(shift - true_shifts[name][t]) * 3600
return np.column_stack([dshift, np.rad2deg(rot) * 60])
data = {name: timestep_data(name, t) for name in names}
allv = np.concatenate(list(data.values()))
lo, hi = np.percentile(allv, [0.5, 99.5], axis=0)
pad = 0.1 * (hi - lo)
ranges = list(zip(lo - pad, hi + pad, strict=False))
fig = plt.figure(figsize=(14, 14))
subfigs = fig.subfigures(2, 2)
for sf, name, _c in zip(subfigs.flat, names, colors, strict=False):
corner.corner(
data[name],
fig=sf,
color="black",
labels=labels,
range=ranges,
truths=[0.0, 0.0, 0.0],
truth_color="red",
quantiles=[0.16, 0.5, 0.84],
show_titles=True,
title_fmt=".1f",
smooth=1.0,
levels=(0.68, 0.95),
)
sf.suptitle(name, fontsize=14)
